CNC Drilling Services: A Comprehensive Guide

CNC drilling has revolutionized manufacturing, offering unparalleled precision, efficiency, and versatility. Whether it’s for metal, wood, or specialized materials, CNC drilling services have become an essential component of modern production processes. This article delves into the intricacies of CNC drilling services, highlighting the various machines, bits, and techniques that make this process so effective.

CNC drilling services are integral to the manufacturing industry, enabling the precise creation of holes in various materials such as metal, wood, and plastics. The versatility of CNC drilling machines, combined with the wide range of CNC drill bits, allows for high precision and repeatability, making it a preferred choice for industries like aerospace, automotive, and electronics.

CNC drilling services can be customized to meet specific needs, from CNC deep hole drilling machines used in oil and gas industries to CNC plate drilling machines for large-scale metal fabrication. The automation and precision offered by these services ensure consistent quality and efficiency in production.

At the heart of CNC drilling machines is the CNC system, which automates the drilling process, ensuring precise and repeatable results. The CNC system interprets G-code programming to control the motion of the drill bit, speed, and feed rate, which are crucial for achieving the desired hole dimensions and surface finish.

G-code is the language that CNC machines understand. It dictates how the CNC drilling machine operates, including the path of the drill bit, spindle speed, and depth of cut. Mastery of G-code is essential for any CNC drilling service provider, as it ensures that the machine produces accurate and consistent holes.

Understanding the mechanics of drilling is essential to optimizing the CNC drilling process. Key factors include:

• Chip Formation: Efficient chip removal is vital to prevent tool damage and maintain hole quality.
• Tool-Workpiece Interaction: Proper selection of CNC drill bits and machine settings ensures minimal wear and tear on the tool and workpiece, prolonging the life of both.

Conventional drilling is the most basic form of CNC drilling, involving standard CNC drill bits like twist drills. This method is versatile and can be used on a wide range of materials, from metals to plastics.

Twist Drills: These are the most common CNC drill bits used in both CNC drilling machines and CNC drilling centers. They are suitable for various materials, including wood, metal, and plastic.

Specialized drilling techniques are employed for more complex applications:

• Micro Drilling: Involves the use of extremely small CNC drill bits for creating tiny holes, often used in electronics and medical device manufacturing.
• Deep Hole Drilling: Requires specialized CNC deep hole drilling machines that can drill deep holes with high precision, often used in industries like aerospace and oil & gas.
• Gun Drilling: This process uses a CNC gun drilling machine designed for drilling deep and straight holes, essential for firearms and high-precision components.

Various CNC drilling machines cater to different drilling needs:

• CNC Boring Machine: Used to enlarge existing holes with precision.
• CNC Beam Drilling Machine: Commonly used in construction for drilling beams and large structural components.
• CNC Plate Drilling Machine: Ideal for large-scale metal fabrication, enabling the drilling of plates with high accuracy.
• CNC PCB Drilling Machine: Specially designed for drilling tiny holes in printed circuit boards, crucial in electronics manufacturing.
• CNC EDM Drill: An electrical discharge machine used for drilling hard materials or creating complex shapes.

When it comes to drilling metal, the choice of CNC drilling machine and CNC drill bits is crucial. Machines designed for metal drilling are robust, capable of handling high loads, and equipped with features like coolant systems to manage the heat generated during drilling.

CNC drilling machines for wood are optimized for speed and precision, using CNC wood bits and CNC router drill bits to create clean, accurate holes without splintering. These machines are widely used in furniture making, cabinetry, and other woodworking applications.

The selection of CNC drill bits is critical for achieving the desired results in drilling operations:

• CNC Drill Bits for Aluminum: These bits are typically made from high-speed steel (HSS) or carbide and are designed to cut through aluminum efficiently without causing burrs.
• CNC Wood Bits: Specialized bits for drilling wood, designed to minimize splintering and produce clean holes.
• CNC Router Drill Bits: Used in CNC routers, these bits are versatile and can handle a variety of materials, including wood, plastic, and soft metals.

The performance of CNC drill bits is also influenced by the quality of the tool holder. Tool holders must provide a secure grip on the drill bit while minimizing vibration and ensuring accuracy. Common types of tool holders include collet chucks, hydraulic chucks, and shrink-fit holders.

These are critical parameters that must be optimized based on the material and the CNC drill bits used. Proper spindle speed and feed rate settings ensure efficient cutting, prevent tool wear, and produce high-quality holes.

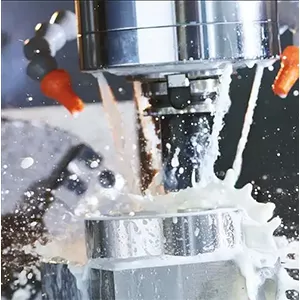

Coolant plays a vital role in CNC drilling, especially when working with metals. It helps reduce heat, remove chips, and extend the life of both the tool and the workpiece. For deep hole drilling, internal coolant channels in the drill bits are often used to ensure consistent cooling.

The properties of the workpiece material, such as hardness, ductility, and thermal conductivity, significantly affect the choice of CNC drill bits and machine settings. For example, aluminum requires different tooling and speeds than steel or wood.

The geometry of the workpiece, including its thickness and the location of the holes, must be carefully considered during the setup of the CNC drilling operation. Proper fixturing and clamping are essential to ensure that the workpiece remains stable during drilling.

Achieving tight tolerances in hole diameter and straightness is a key aspect of quality control in CNC drilling. Advanced CNC drilling machines and precise CNC drill bits are used to ensure that holes meet the required specifications.

The quality of the surface finish inside the hole is also important, particularly in high-precision applications. A smooth surface reduces friction and wear, which is critical in components like engine parts or medical devices.

Automation in CNC drilling is further enhanced by tool changers, which allow the machine to switch between different CNC drill bits without human intervention. This capability is especially valuable in high-volume production environments.

Automated part handling systems, including robotic arms and conveyors, are often integrated into CNC drilling setups to streamline the manufacturing process, reduce cycle times, and improve overall efficiency.

In the aerospace industry, CNC drilling services are used to produce high-precision components like airframe structures and engine parts. The ability to drill deep and accurately is crucial for maintaining the structural integrity of these components.

CNC drilling services are widely used in the automotive industry for drilling engine blocks, transmission components, and other critical parts. The precision and repeatability of CNC drilling ensure that each part meets strict quality standards.

In electronics, CNC PCB drilling machines are essential for creating the tiny holes needed for component placement on printed circuit boards. This process requires extreme precision and the ability to handle very small CNC drill bits.

In woodworking, CNC drilling machines are used for creating holes for dowels, screws, and other fasteners. CNC router drill bits and CNC wood bits are specifically designed to produce clean, accurate holes in various types of wood.

Tool wear is a significant challenge in CNC drilling, particularly in high-speed operations or when drilling hard materials. Advanced CNC drilling machines are equipped with sensors and monitoring systems that detect tool wear and adjust the drilling parameters to compensate, thereby extending tool life and maintaining quality.

There is a growing focus on sustainable manufacturing in CNC drilling. Techniques like Minimum Quantity Lubrication (MQL) and dry machining are being adopted to reduce the environmental impact of drilling operations without compromising performance.

CNC drilling services have become an indispensable part of modern manufacturing, offering the precision, efficiency
